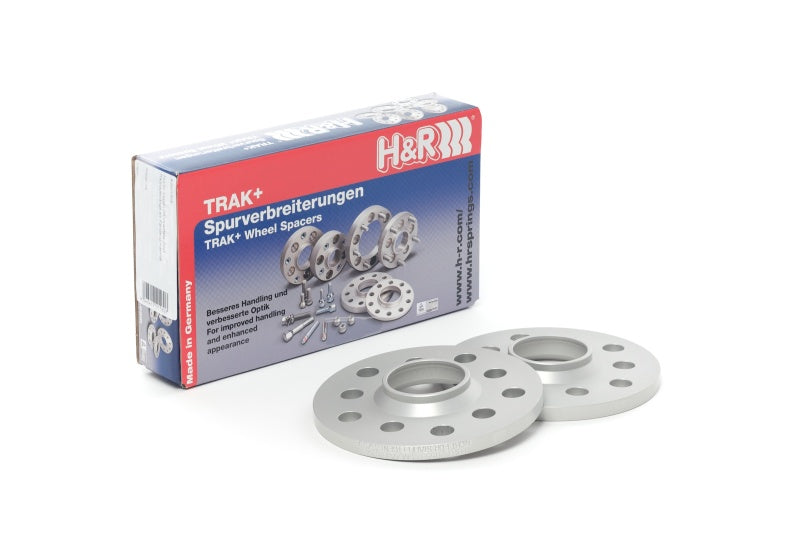

H&R Trak+ 5mm DR Wheel Adaptor Bolt 5/120 Center Bore 74 Bolt Thread 12x1.5
H&R Trak+ 5mm DR Wheel Adaptor Bolt 5/120 Center Bore 74 Bolt Thread 12x1.5
H&R
All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a)If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. The bolt head must be identical to the existing bolt: Taper 60: End digit 01 Round head for M12/d24 mm, M14/d28 mm: End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels): End digit 03 Flat head for Porsche original wheels M14 x 1.5: End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).This Part Fits:
Year
Make
Model
Submodel
2001-2003
BMW
525i
Base
1997-2000
BMW
528i
Base
2001-2003
BMW
530i
Base
1997-2003
BMW
540i
Base
2000-2003
BMW
M5
Base
2007-2008
BMW
X5
3.0si
2007-2008
BMW
X5
4.8i
2010-2013
BMW
X5
M
2009-2010
BMW
X5
xDrive30i
2009-2013
BMW
X5
xDrive35d
2011-2013
BMW
X5
xDrive35i
2009-2010
BMW
X5
xDrive48i
2011-2013
BMW
X5
xDrive50i
2010-2011
BMW
X6
ActiveHybrid
2010-2014
BMW
X6
M
2008-2014
BMW
X6
xDrive35i
2008-2014
BMW
X6
xDrive50i
-
1-4 DAYS DELIVERY
-
100% ORIGINAL AND QUALITY
-
24 MONTHS GUARANTEE
All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a)If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. The bolt head must be identical to the existing bolt: Taper 60: End digit 01 Round head for M12/d24 mm, M14/d28 mm: End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels): End digit 03 Flat head for Porsche original wheels M14 x 1.5: End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001-2003 | BMW | 525i | Base |
| 1997-2000 | BMW | 528i | Base |
| 2001-2003 | BMW | 530i | Base |
| 1997-2003 | BMW | 540i | Base |
| 2000-2003 | BMW | M5 | Base |
| 2007-2008 | BMW | X5 | 3.0si |
| 2007-2008 | BMW | X5 | 4.8i |
| 2010-2013 | BMW | X5 | M |
| 2009-2010 | BMW | X5 | xDrive30i |
| 2009-2013 | BMW | X5 | xDrive35d |
| 2011-2013 | BMW | X5 | xDrive35i |
| 2009-2010 | BMW | X5 | xDrive48i |
| 2011-2013 | BMW | X5 | xDrive50i |
| 2010-2011 | BMW | X6 | ActiveHybrid |
| 2010-2014 | BMW | X6 | M |
| 2008-2014 | BMW | X6 | xDrive35i |
| 2008-2014 | BMW | X6 | xDrive50i |
